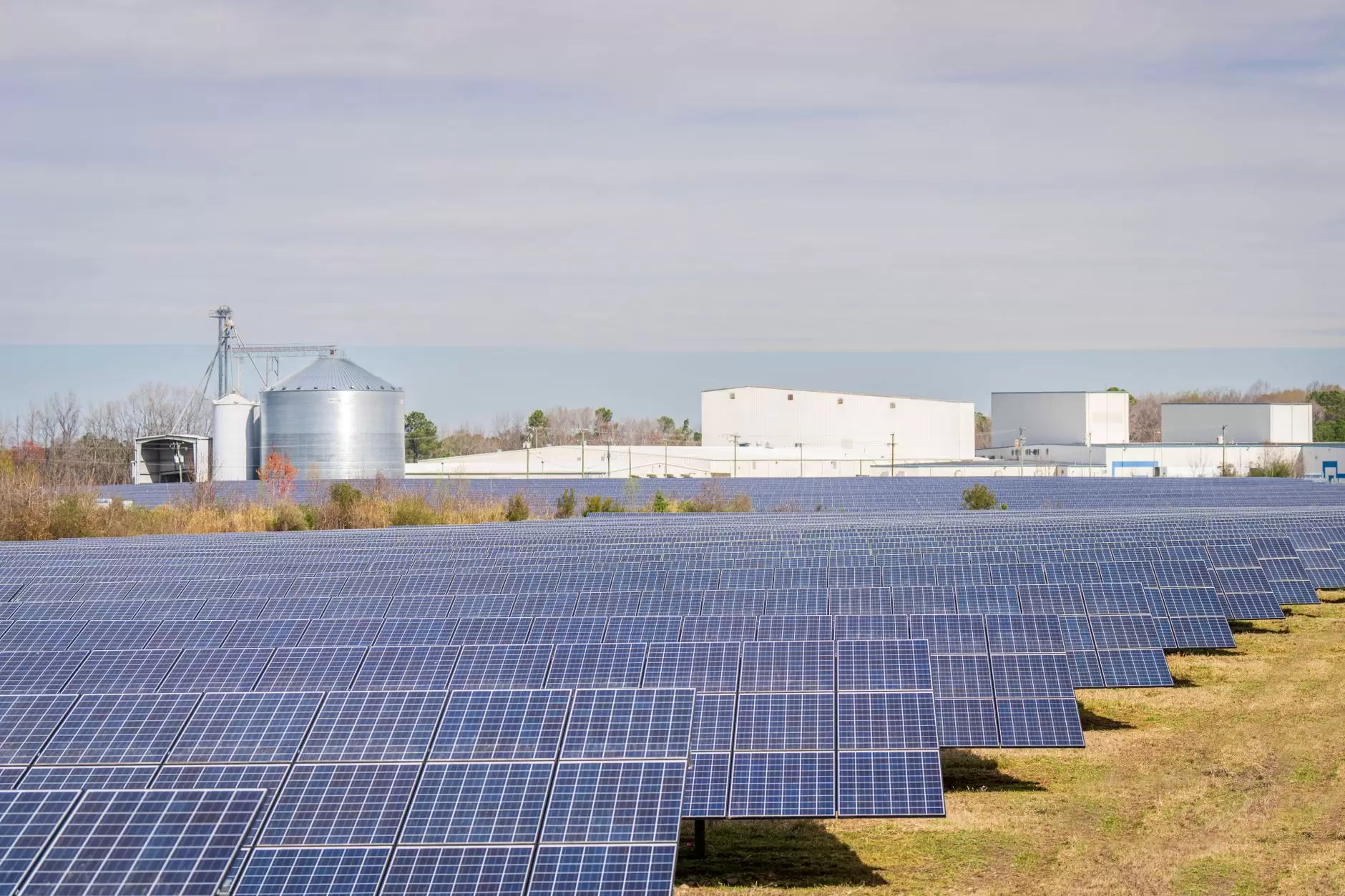

The Observation That Arrived 58 Years Before the Electron
In the late spring of 1839, nineteen‑year‑old Edmond Becquerel, working in his father’s laboratory at the Muséum d’Histoire Naturelle in Paris, submerged a pair of platinum electrodes in an acidic solution, tilted one toward the window, and recorded a small deflection on his galvanometer. Light had created an electric current—the first recorded instance of solar PV electricity generation. The experiment was careful, the measurement unambiguous, and the explanation entirely unavailable. The electron would not be posited for another fifty‑eight years, and the quantum theory that makes sense of the photovoltaic effect would not coalesce until the twentieth century was well underway.
The long gap between observation and theory reflects a structural feature of photovoltaic technology. The engineering worked before anyone understood why. It continued working through century‑long gaps in fundamental physics. Most professionals who commission solar farms, finance generation portfolios, or draft grid‑connection standards could not trace the physical conversion chain from a photon entering a module to three‑phase alternating current leaving a substation. That gap between operational familiarity and engineering comprehension creates planning assumptions — about ramp rates, fault behaviour, shade tolerance, voltage support — that become expensive when penetration crosses into double digits.
This article traces the full photovoltaic conversion chain as a physics‑to‑grid narrative. It moves from the semiconductor junction outward: the photovoltaic effect in a crystalline lattice, the materials‑science choices that keep silicon dominant despite its indirect bandgap, the packaging engineering that turns millimetre‑thick wafers into weatherproof modules, the power‑electronic translation from direct to alternating current, and the synchronisation requirements that decide whether solar generation supports the electricity system or merely inhabits it. Market design and storage are separate discussions and are treated elsewhere.
Inside the Silicon Junction: Photons, Electrons and Built‑In Fields
Sunlight reaching the Earth’s surface is a broad spectrum. Not all of it is useful. For crystalline silicon, only photons carrying energy above the bandgap of about 1.1 electronvolts can liberate an electron. Photons below that threshold pass through the cell unabsorbed. Photons above it do dislodge an electron, but any energy exceeding 1.1 eV becomes heat rather than additional electrical potential. This is the fundamental ceiling described by the Shockley–Queisser limit — roughly 33 percent for a single‑junction silicon cell under unconcentrated sunlight, derived in 1961 and still governing commercial cell design.
The liberation of an electron inside a pure silicon crystal creates a charge pair that would ordinarily recombine almost instantly. A photovoltaic cell works because it imposes a built‑in electric field that separates the electron from its hole before recombination can happen. Without that field, the cell would produce warmth, not current. The field arises from doping — introducing impurities into two adjacent silicon layers. On one side, atoms such as phosphorus contribute an extra electron, making the crystal n‑type. On the other, boron atoms contribute one electron fewer, creating electron vacancies that behave as positive charge carriers — the p‑type layer.
Where the two layers meet, mobile carriers diffuse and recombine, leaving behind fixed charged ions. This depletion region contains the electric field. When a photon creates an electron‑hole pair within or near this region, the field sweeps the electron toward the negative contact and the hole toward the positive contact. Close the circuit, and current flows. That description is correct but insufficient for understanding why real‑world modules produce the power they do — or why small engineering decisions about contact grid geometry, anti‑reflective coating thickness, and back‑surface field design shift module efficiency by several percentage points. The junction provides the effect; the surrounding engineering determines whether that effect becomes useful electricity.
Historical Context: From Becquerel to the Silicon Cell
Becquerel had observed the effect but could not explain it. The barrier was conceptual: without the electron as a discrete particle, charge generation from light remained a chemical curiosity. The decades that followed brought indirect progress — Willoughby Smith’s 1873 discovery of photoconductivity in selenium, Charles Fritts’ 1883 selenium‑on‑metal solar cell with an efficiency below 1 percent — but no coherent theory. The puzzle of generating a useful voltage from a solid‑state junction awaited two twentieth‑century developments: quantum mechanics, which explained how a photon’s energy could liberate a charge carrier, and the purification of semiconducting materials, which made the controlled doping necessary for a p‑n junction industrially possible.
The junction itself entered photovoltaic history through the transistor age. Bell Laboratories, having mastered germanium and silicon crystal growth, tasked Daryl Chapin, Calvin Fuller, and Gerald Pearson with finding a practical power source for remote telephone equipment. In 1954 they produced a silicon p‑n junction cell that converted about 6 percent of sunlight into electricity. The New York Times ran the story under the headline “Vast Power of the Sun Is Tapped by Battery Using Sand Ingredient.”
The cell’s architecture — a diffused p‑n junction beneath an anti‑reflective coating, with a metallic grid to collect current — is still the point of departure for commercial modules. What changed in the following decades was not the underlying physics but the precision and scale with which that architecture could be manufactured.
The historical thread matters because it locates the bottleneck. The physical principle — photon absorption creating a mobile charge pair separated by a built‑in field — has been settled since the 1960s. The materials that exploit it, the packaging that protects it, and the electronics that condition its output are where the engineering challenge has remained. Understanding the full conversion chain, therefore, means starting with the junction but not stopping there.
Why Silicon, and Why Thick
Silicon dominates the photovoltaic market, accounting for the vast majority of global module production as of the mid‑2020s, a statistic so stable it can seem like a law of nature. It is not. Silicon is abundant — the second most common element in the Earth’s crust — and the microelectronics industry had already spent decades building supply chains, quality‑control protocols, and a trained workforce around it. Photovoltaic manufacturing inherited those assets wholesale.
In purely optical terms, however, silicon is not the strongest candidate. It is an indirect bandgap semiconductor, meaning that photon absorption requires a phonon — a lattice vibration — to participate. Direct bandgap materials such as gallium arsenide absorb light far more efficiently. A silicon wafer must be roughly a hundred times thicker than a gallium arsenide layer to capture the same fraction of incident photons. The industry responds with wafers approximately 150 to 180 micrometres thick, their surfaces textured with microscopic pyramids that trap light through multiple internal reflections — compensating for a material limitation through structural engineering.
The dominance of silicon also shapes the research frontier. Thin‑film technologies — cadmium telluride, copper indium gallium selenide — achieve decent efficiencies with far less semiconductor material, yet their commercial share remains small. Perovskite solar cells have climbed from 4 percent efficiency in 2009 to above 25 percent in single‑junction devices and above 33 percent in tandem configurations with silicon. The main difficulty is stability under moisture, oxygen, and prolonged illumination. Solving that is a materials‑engineering problem, and industrial timelines for materials engineering tend toward decades rather than press‑release cycles.
From Cell to Module: Voltage Multiplication and the Shade Penalty
A single crystalline silicon cell produces about 0.5 to 0.6 volts at maximum power — a figure set by the silicon bandgap that varies only slightly across commercial designs. To reach usable voltage — typically 30 to 50 volts for residential modules and higher for utility‑scale designs — cells are wired in series. Series connection delivers voltage multiplication but introduces a structural vulnerability. The entire string operates at the current of its weakest cell. A single shaded leaf, a patch of bird droppings, or a manufacturing defect on one cell constrains the output of every cell in series with it.
Bypass diodes offer a partial answer. A typical module contains three, each shunting one‑third of the cells. When a section is shaded, current reroutes around it. The engineering is straightforward, but the trade‑off is familiar across photovoltaic system design: resilience adds cost. A module without bypass diodes is cheaper to manufacture and far more exposed to real‑world soiling and partial shading.
The cell‑to‑module packaging also introduces optical penalties. Bare silicon reflects about 30 percent of incident light. A thin layer of silicon nitride — deposited to a precise thickness — creates destructive interference for specific wavelengths, reducing reflection below 5 percent. The front glass — usually low‑iron tempered sheet 3.2 millimetres thick — transmits the solar spectrum while providing mechanical strength; the encapsulant — ethylene vinyl acetate or polyolefin — bonds cells between glass and backsheet and stays optically transparent. Every layer introduces a small cumulative transmission loss. Understanding the cell in isolation explains the physics; understanding the module explains why nameplate ratings and field‑measured yields rarely coincide.
The Inverter: Direct Current Meets Alternating Current
DC‑AC Conversion and Maximum‑Power‑Point Tracking
Photovoltaic cells deliver direct current. Electricity grids operate on alternating current. The device that bridges these domains — the inverter — performs several tasks: DC‑to‑AC conversion, continuous maximum‑power‑point tracking, grid synchronisation, and, increasingly, grid‑support services such as reactive‑power injection and voltage regulation.
Maximum‑power‑point tracking is the first step. A cell’s voltage–current curve is nonlinear, and the point of maximum power shifts with irradiance and temperature. A fixed load would extract far less than the available power in most conditions. The inverter adjusts the electrical impedance it presents to the array — sampling voltage and current, continuously tracking the maximum power point — to hold the operating point at the knee of the curve where the voltage‑current product is highest. The process updates faster than typical cloud movements but slowly enough to avoid instability.
The DC power then enters a switching stage built around power semiconductors — typically insulated‑gate bipolar transistors or increasingly silicon carbide MOSFETs — that toggle thousands of times per second. The switching frequency, in the kilohertz range depending on topology and application, shapes a pulse‑width‑modulated waveform that, after filtering, approximates a clean sine wave with total harmonic distortion below 5 percent in most jurisdictions. Higher frequencies permit smaller, lighter filter components; lower frequencies reduce semiconductor switching losses. The design represents a compromise between weight, efficiency, and regulatory compliance.
Transformerless inverters, now dominant in many markets, eliminate the heavy copper‑and‑iron transformer that formerly sat between the inverter and the grid. The weight saving and meaningful efficiency gain are worthwhile, but the decision removes galvanic isolation between the DC array and the AC network. Without a transformer, leakage currents can travel through the modules’ parasitic capacitance to ground, posing electrical safety and interference issues. Mitigation depends on ground‑fault detection and interruption circuitry, the specifics of which vary substantially across national wiring regulations.
Grid Synchronisation and Ride‑Through
Connecting an inverter to the grid is not simply a matter of matching voltage at 50 or 60 hertz. The inverter must stay synchronised through voltage sags, abrupt load changes, or the sudden loss of a neighbouring generator. Early grid codes, written when solar was negligible, instructed inverters to disconnect at the first sign of trouble to protect hardware. As penetration has risen — regularly exceeding 50 percent of instantaneous demand in South Australia during daylight hours, and occasionally approaching 100 percent from rooftop solar alone — that behaviour has become a systemic threat. If several gigawatts of solar generation disconnect simultaneously during a transmission fault, the resulting frequency excursion can propagate across interconnections.
Modern grid codes in high‑penetration regions — Germany, California, South Australia — require fault ride‑through: the inverter must stay connected through specified disturbances and, in many cases, inject reactive current to support grid voltage during the event. Implementing this demands control software capable of detecting asymmetric faults, distinguishing transient from permanent conditions, and responding within tens of milliseconds. The same control challenges appear in wind turbine design, where power‑electronic converters face analogous stability obligations.
Grid‑forming inverters represent the next evolution within the conversion chain. A grid‑following inverter assumes an existing stable voltage waveform and synchronises to it. A grid‑forming inverter generates its own voltage reference independently, enabling operation without a strong grid signal. The capability has long existed in off‑grid battery systems. It is becoming relevant for solar as the industry contemplates grids where inverter‑based generation exceeds synchronous generation from hydroelectric and thermal plants. The engineering difficulty is coordination: when multiple grid‑forming inverters operate in parallel, their voltage and frequency references must remain stable without a central controller — echoing synchronisation challenges of parallel synchronous generators, but at sub‑cycle speeds.
Where the Chain Leads Next
Tracing the conversion chain from photon to grid‑ready alternating current frames the developments that will shape photovoltaic technology in the coming decade. The semiconductor junction itself is unlikely to change fundamentally, but the layers around it are advancing. Tandem cells, combining a silicon bottom cell with a perovskite or other wide‑bandgap top cell, push past the single‑junction Shockley–Queisser limit by absorbing different parts of the spectrum in separate junctions — a refinement at the materials stage. Module‑level power electronics, including microinverters and DC optimisers embedded within the packaging, alter the shade‑tolerance trade‑offs described earlier. Inverter firmware continues to evolve toward grid‑forming capabilities that address the synchronisation challenges outlined above.
Each of these developments can be evaluated through the same lens: does it improve the capture of photons, the transport of charge out of the junction, the protection of those fragile layers, or the fidelity with which direct current becomes alternating current synchronised to the grid? The physics inside the semiconductor is settled. The engineering that connects the semiconductor to the grid — at the cell, the module, and the inverter — remains under active development, and its trajectory will shape the electrical architecture of the twenty‑first century.
References
- Becquerel, A.E. — Mémoire sur les effets électriques produits sous l’influence des rayons solaires (1839). Original documentation of the photovoltaic effect, providing the historical basis for the opening hook and chronology.
- Chapin, D.M., Fuller, C.S., and Pearson, G.L. — Journal of Applied Physics (1954). Bell Laboratories paper describing the first practical silicon solar cell at approximately 6 percent efficiency.
- Shockley, W. and Queisser, H.J. — Journal of Applied Physics (1961). Derivation of the detailed‑balance efficiency limit for single‑junction cells, establishing the ~33 percent ceiling used in the photovoltaic effect discussion.
- Fraunhofer Institute for Solar Energy Systems — Photovoltaics Report. Market‑share and efficiency data supporting the silicon dominance and manufacturing sections.
- Australian Energy Market Operator (AEMO) — South Australian Advisory Functions and related grid‑code publications. Evidence of high instantaneous solar penetration and fault ride‑through requirements referenced in the grid synchronisation section.
